Product Introduction

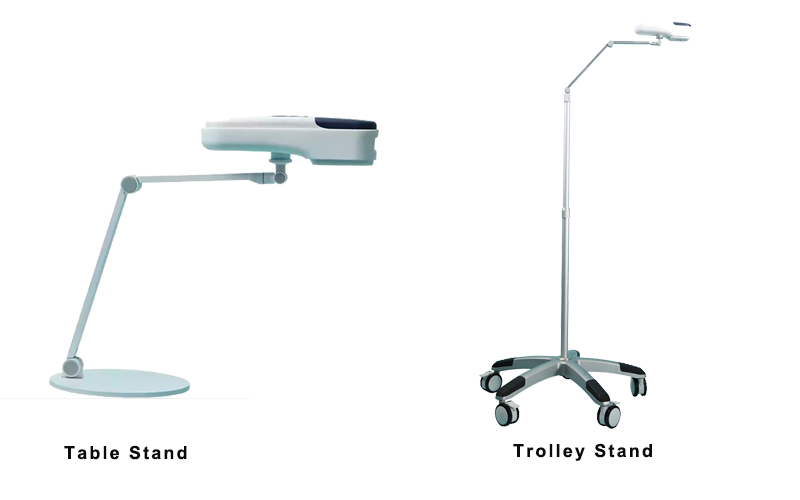

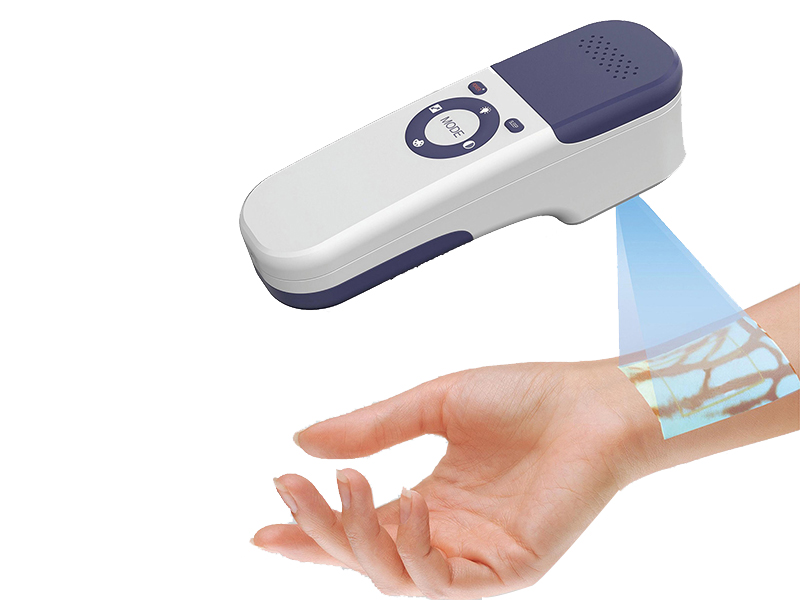

HFM-V500 is a smart vein finder detection device that can project the patient's vein images in real time onto the skin surface. It comes with desktop and mobile fixed brackets to choose from. With this smart vein finder, venipuncture will become very simple. And the product adopts ergonomic design, which is also very comfortable to use.
Assist medical staff to observe the vascular thickness, length, curve and branch information to determine the best puncture location. lt highly increase the success rate of puncture thus reduce the cost and pain.
In fat / Plastic Surgery / Varicose Veins / Fine Blood Vessels / Chemotherapy Patients / Vascular Obstruction
Function
This machine has various user-defined functions, which can adapt to different ages, body shapes, skin colors, weights and various operating environments.
Ø 7 Colors Available: Suitable for different skin colors or environments.
Ø 3 Sizes Available: Suitable for adults, children and newborns.
Ø 5 Levels of Brightness: Adjust the projection image to the most comfortable brightness.
Ø Inversion: Reduce arm hair interference and make blood vessels clearer
Ø Enhancement Mode: Enhance the clarity of blood vessel detection.
Ø Sleep Mode: enter into ow power mode when the user needs short intervals and can be waked up quickly
Ø Power monitoring: Real-time monitoring of battery power and projection of remaining power, alert the user when the battery is low
Light: |
The human body's harmless infrared light |
Distance: |
15-25cm |
Accuracy |
±0.3mm |
Noise: |
≤20dB |
Weight: |
280g |
Product size: |
20cm (L)*6.2cm(W)*5.5cm(H) |
batteries: |
Panasonic 3400mAh lithium battery |
Power |
DC 5V 2A |
The adapter |
100V-240V,AC 50Hz-60Hz; 5V 2A |
American TI projection technology |
